The VX-20 is Kowa's unique, hybrid combination retinal camera that offers versatile, high quality retinal imaging in one easy-to-use system. Due to its outstanding features, the VX-20 remains the first choice for clinicians. With a built in PC and high-resolution camera back, this fundus camera is a versatile diagnostic tool with stand-alone capability. The VX-20 fits perfectly within the clinical environment with its compact design and versatile operation. The VX-20 offers enhanced functionality at the touch of a button allowing the clinician to switch quickly between mydriatic & non-mydriatic modes. It includes a 7 inch wide, LCD color touchscreen that is simple to use and ideally positioned to ensure easy patient observation. What's more, the control panel's updated design improves the operator experience, ensuring everything is within easy reach for the clinician
- Working Distance 39mm
- Internal Fixation Target; Central, Disc, Macula, Peripheral
- External Fixation Target Red/Green LED
- Camera Greater than 12 Megapixel

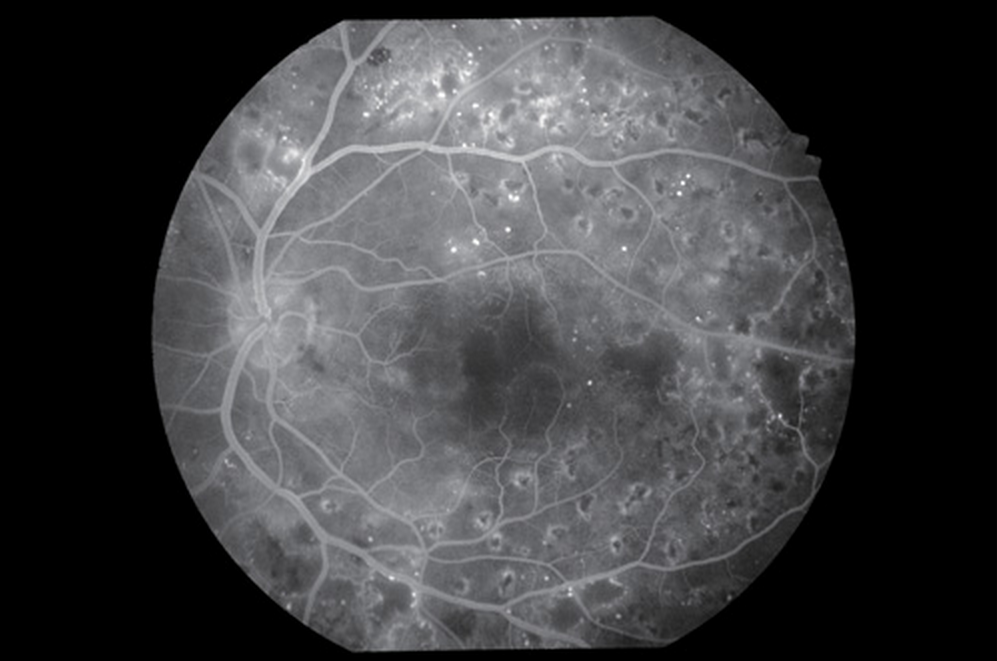

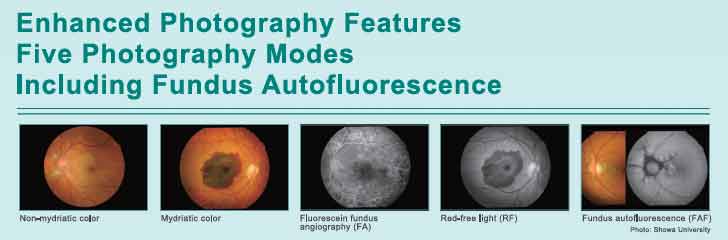

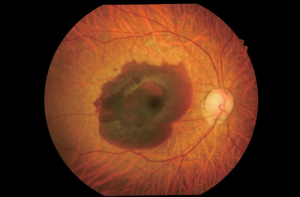

- Modes Non-mydriatic Color, Mydriatic Color, Fluorescein Fundus Angiography (FA), Red-Free (RF), and Fundus Autofluorescence (FAF)
- Field of View; Non-mydriatic Mode: 45°/27°, Mydriatic Mode: 50°/30° (SP: 45°/27°)
- Minimum Pupil Diameter; ⌀ 3.5mm
- Light Source For Observation: Halogen Lamp For Photography: Xenon Flash Lamp Flash
- Recording Medium CF Memory Card
- Interface USB: VK-2 Connection, Printer Connection
- Monitor 7 Inch Widescreen Touch LCD
- Dimensions 390 (W) x 540 (D) x 720 (H) mm
- Weight 39kg/86lbs
- Power Supply Input: AC 120/230V 50/60Hz
- Power Consumption: 250VA 1500VA (Max).
