General Specifications
  • Repetition Rate up to 3 hertz
  • Aiming Beam red 635 nm, adjustable intensity
  • Magnification 10x, 16x, 28x
  • Cooling air cooled
  • Electrical Requirements 100-240 VAC, 50/60 Hz, 500 VA
  • Weight 31 kg, 68 lbs (laser only)
  • Dimensions (HxWxD) 57 x 75 x 44 cm, 23 x 30 x 18 inches (laser only)
SLT Specifications
  • Laser Source: Q-switched, frequency doubled Nd:YAG
  • Wavelength: green: 532 nm
  • Energy: 0.3 to 2.6 mJ, per pulse, continuously variable
  • Pulse Duration: 3 ns
  • Burst Mode: single pulse only
  • Spot Size: 400 μm
  • Cone Angle: <3 degrees
YAG Specifications
  • Laser Source: Q-switched Nd:YAG
  • Wavelength: 1064 nm
  • Energy: 0.3 to 10 mJ, per pulse, continuously variable
  • Pulse Duration: 4 ns
  • Burst Mode: 1, 2 and 3 pulses per burst, selectable
  • Spot Size: 8 μm
  • Cone Angle: 16 degrees
Standard Accessories
  • Total Solution™ tables
  • Remote display
  • Safety glasses
  • Laser safety sign
  • Dust cover
Optional Accessories
  • Tonometer mount
  • SLT laser lens
  • Capsulotomy and iridotomy laser lenses
  • Footswitch
  • Five-position magnification changer
  • Beam splitter
  • 35 mm camera adapter
  • Video camera adapter
  • Co-observation tube

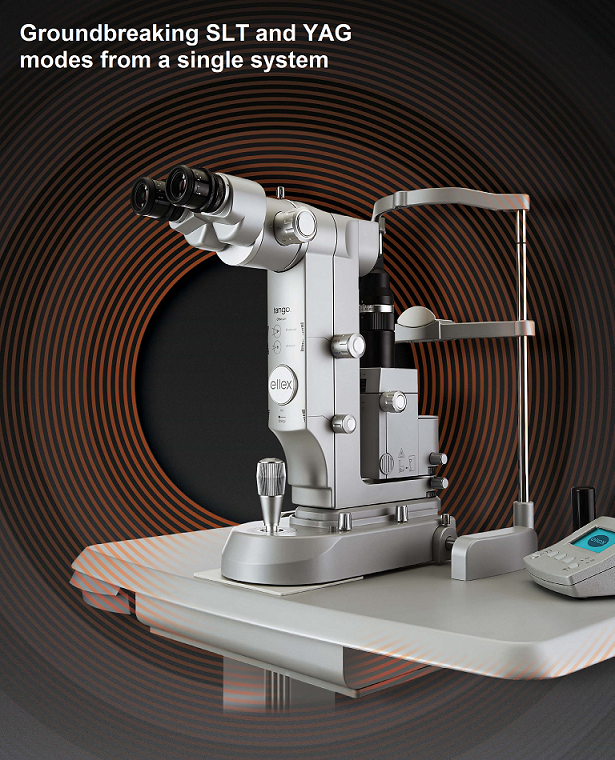

Tango™

Tango™ combines a full-featured SLT laser with a powerful, precise YAG laser, helping you to better manage both OAG and ACG patients, while also providing a highly effective solution for capsulotomy procedures.

Engineered and built by Ellex, Tango™ brings together 30 years of manufacturing expertise and cutting-edge technology to deliver consistently better treatment results. Featuring a proprietary, patented dual-mode laser cavity, which allows you to instantly – and reliably – switch between SLT and YAG modes, combined with a custom-designed power supply that maintains optimum system stability for greater shot-to-shot consistency, Tango™ allows you to perform SLT and YAG treatments with improved accuracy and greater efficacy over the long-term.


Engineered to Outperform. Built to Outlast.

Tango is Engineered to be Faster and More Precise

Industry’s fastest firing rate at 3 shots per second: Proprietary cavity facilitates effective heat transfer and cooling, combined with rapid recharging of the pulse capacitors.
Precise adjustment of parameter settings at 0.1 mJ increments: Automatic calibration process, combined with a series of test-fire sequences, uses feedback from the system’s energy monitor in order to constantly adjust system output.

Tango is Manufactured for More Consistent, Reliable Performance
Lifespan of more than 400,000 shots: YAG optical Q-switch made from thermally matched, homogenous materials to withstand warping and erosion.
Greater shot-to-shot consistency: Custom-built YAG power supply with micro-controller and energy compensation algorithm.
