plusoptiX Autorefractor A12C



Features
  • Validated measurement technology
  • Immediate and reliable pass/refer screening results
  • Binocular testing of both eyes within 1 second
  • Non-invasive operation from 39 inches away
  • Interface to EMR1
  • Print screening report
  • Print self-adhesive label
  • Calibration and maintenance free
  • Eligible for CPT code 99174 (photoscreening)

Includes

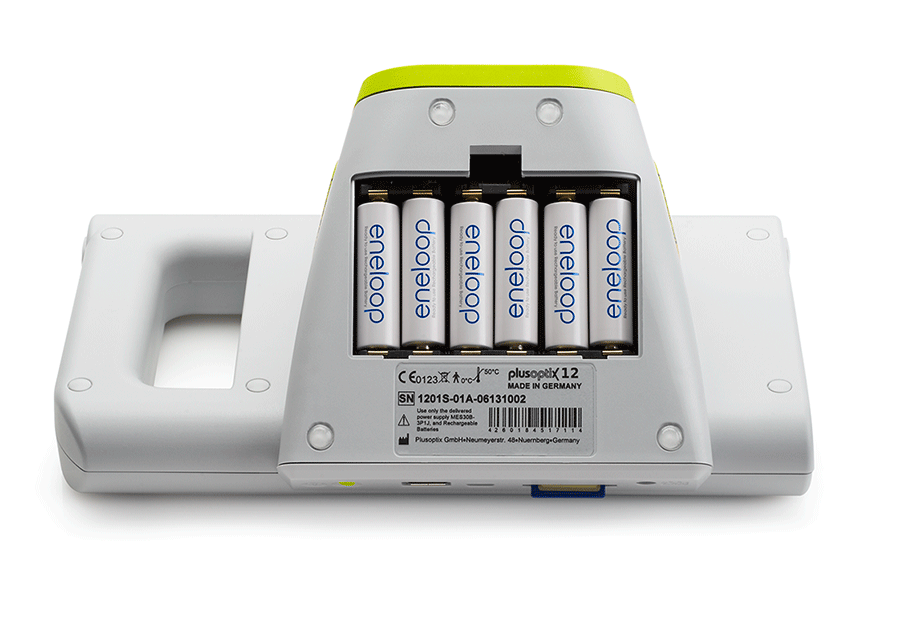

  • Medical power adapter and 6 rechargeable AA batteries A12C-No-Battery
  • Ergonomic neck strap and carrying case with shoulder strap
  • 2GB SD memory card

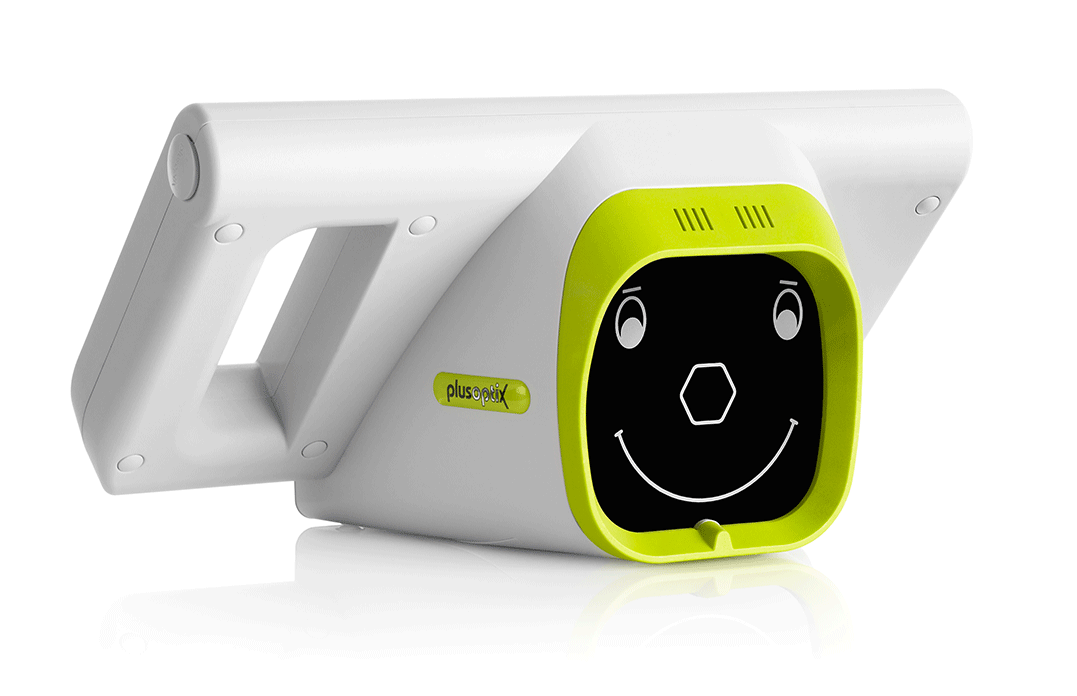

A12C-No

A12C designed to screen for refractive error, anisocoria and strabismus in children starting at age 6 months. Because it's so easy to use it's used by pediatricians, school nurses and Lions clubs alike. Vision Screening can be performed in any child because the only compliance needed is a short fixation of the camera. This fixation is provoked by a specially designed sound target, called a "warble" sound.



  • Designed to be used at different locations within the same building (optional carrying case is available);
  • Runs on rechargeable, standard AA size batteries (operational while charging);
  • Provides in-built patient database for up to 100,000 entries for follow-up management and studies;
  • Can be connected to a WLAN (WiFi) DHCP network server for data exchange (EMR) and measurement report printing;
  • Prints self-adhesive labels for documentation in paper records (optional printer required);

A12 measurement rear view

Performing a screening is simple, takes less than one second and can be performed by non-medical staff or volunteers. Start the camera by pulling the trigger, a sound attracts attention, capture both eyes in the white rectangle on screen and a measurement is performed automatically. Screening distance is 1 meter (3.3 feet) with a tolerance of +/- 5 centimeters (+/-2 inches). Screening results are displayed on screen immediately.

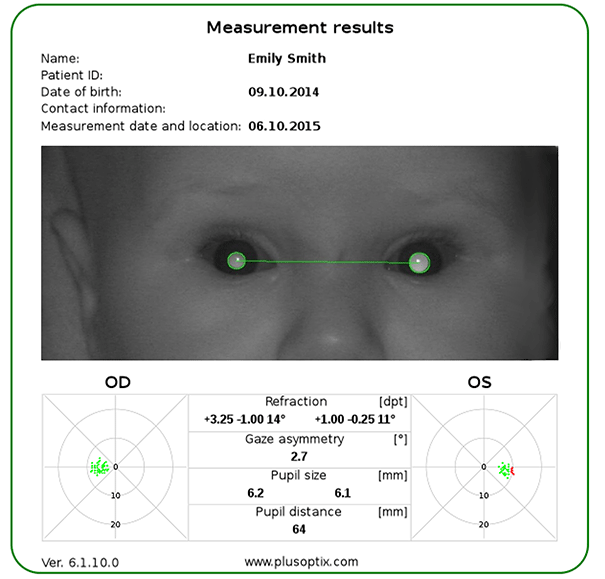

A12C-Measurement-report--plusoptiX
