Specifications
  • Stimulus generation: TFT Monitor
  • Peripheral range (distance): 30° (infinite)
  • Background illumination: SAP: 10 cd/m2; Pulsar: 32 cd/m2
  • Stimulus size (°): SAP: 0.43 (Size III); Pulsar: 5
  • Stimulus duration (ms): SAP: 100; Pulsar: 500
  • Stimulus intensity (asb, dynamic range): SAP: ~35 dB; Pulsar: ~35 src
  • Fixation control: Blink Control, Pupil Position Control, Dart Control, Contact Control
  • Networking: DICOM, EMR, Ethernet
  • Data Import: Octopus 101, 123, 300 and 900; HFA
  • Measures: (W x L x H) 467 × 508 × 500 mm
  • Weight 12.7 kg; 28.0 lbs
Accessories
  • Eye patch
  • Trial Lenses

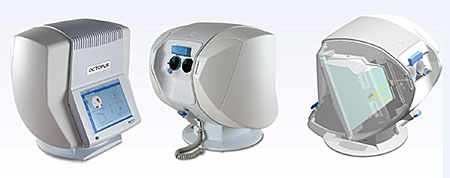

Octopus® 600

 See the new pulse in perimetryffa2c63085

  • Novel perimeter technology for early diagnosis and standard white-on-white perimetry in one compact sized instrument.
  • Easy, straight forward operation with touch screen optimized and networkable EyeSuite® software that saves you and your patients time.
  • World innovation in perimetry – fast and reliable Pulsar test method for early glaucoma detection.

A perfect team: Early diagnosis and standard white-on-white perimetry in one device
The Octopus® 600 extends the successful HAAGSTREIT product range of visual field analysers combining the Pulsar method for early glaucoma detection and standard white-on-white perimetry for long term follow-up in one compact and standalone device. It is the first visual field analyser that performs standard white-on-white perimetry on an integrated flicker-free screen, using TFT and LED technology.


  • Standalone or network integration
  • Small footprint
  • Maintenance-free LED background illumination
  • No darkroom required

Perimetry simplified

The same, easy to use EyeSuite® software already known from the Octopus® 900 has been further streamlined to
operate the Octopus® 600. The intuitive concept of both the examination and viewing screens are the key components of the new touch screen optimized user interface.

Results can be analyzed on the device immediately after the examination is finished or sent to a printer, EMR system or DICOM server. The Octopus® 600 can produce reliable visual field results with minimal user training and it doesn’t take an expert to run a reliable field.

It just takes 3 simple steps:
1. Select patient
2. Choose Pulsar or standard white-on-white
3. Hit the start button

The streamlined workflow increases patient throughput while still making use of proven Octopus® concepts such as fixation control to obtain reliable results



Test methods
Standard white-on-white perimetry SAP
Pulsar perimetry for early diagnosis
Test strategies
TOP (Tendency Oriented Perimetry, 2–4 min)
Dynamic (adaptive step size, 6–8 min)
Normal (4-2-1 bracketing, 10–12 min)
Test patterns
General/Glaucoma 30° (G1-Program, 32 (corresponding to 30-2), 24-2)
Macula (M-Program, 10-2)
Progression analysis
Global progression (MD, sLV)
Cluster Trend/Polar Trend
