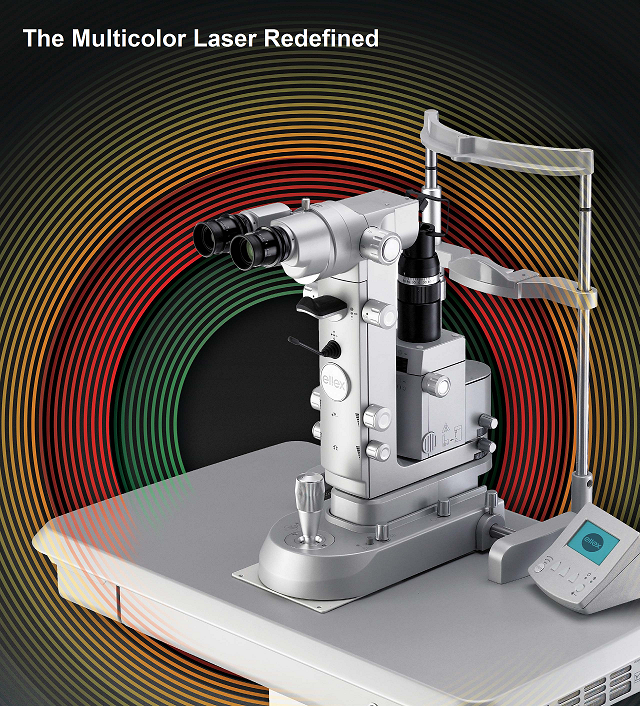

Integre Pro ™
Better Diagnosis and Treatment All-In-One
The all-in-one laser/slit lamp design of Integre Pro™ features a purpose-built slit lamp optimized for use in the posterior segment. Not only does this provide better depth perception, but it also offers optimum illumination of the fundus and a wider peripheral view. Additionally, Integre Pro’s treatment laser delivers a uniform energy distribution across the full diameter of the spot, from the beginning to the end of exposure – ensuring consistently better performance in the treatment of retinal disease.

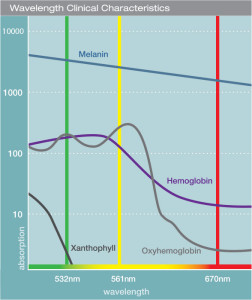

Clinical Versatility
Integre Pro™ can be configured with up to two wavelengths in order to best meet your clinical requirements. Choose from a combination of 561nm yellow, 670 nm red or 532nm green, including:
1. yellow-red configuration (561 nm and 670 nm)
2. green-red configuration (532 nm and 670 nm)
3. green configuration (532 nm)
4. yellow configuration (561 nm)
561nm Yellow: maximal absorption in hemoglobin with negligible absorption in macular xanthophyll.
The 561nm yellow wavelength approximates the peak absorption of hemoglobin, is well absorbed by melanin in the retinal pigment epithelium (RPE) but has minimal absorption by xanthophyll in the neurosensory retina —making it ideal for treatments in and around the macula. It also produces less scatter, which permits superior transmission through existing opacities. With the 561nm yellow wavelength, you have more control over the laser-tissue interaction, which creates a more predictable, controlled burn. In addition, treatment can be performed at lower power levels, creating significantly less discomfort for the patient.
670nm Red: deep, gentle penetration for effective treatment of choroidal vessels.
The 670nm wavelength features low absorption by hemoglobin, improving its transmission through minor pre-retinal, sub-retinal or intra-retinal hemorrhage. In addition, its penetration depth is ideal for selectively treating choroidal vessels, while helping to preserve the integrity of the overlying retinal layers. 670nm offers less scatter than the yellow wavelength, making it ideal for transmission through a cloudy cornea or lens. The results are gentle, deep retinal tissue penetration and effective treatment of choroidal vessels.
532nm Green: the standard of care for common procedures, such as panretinal photocoagulation.
The 532nm wavelength is primarily absorbed by melanin and hemoglobin, making it ideally suited for treatment applications involving the RPE layer and new blood vessels. For example, pan-retinal photocoagulation (PRP).
Designed to Maximize Your Workflow

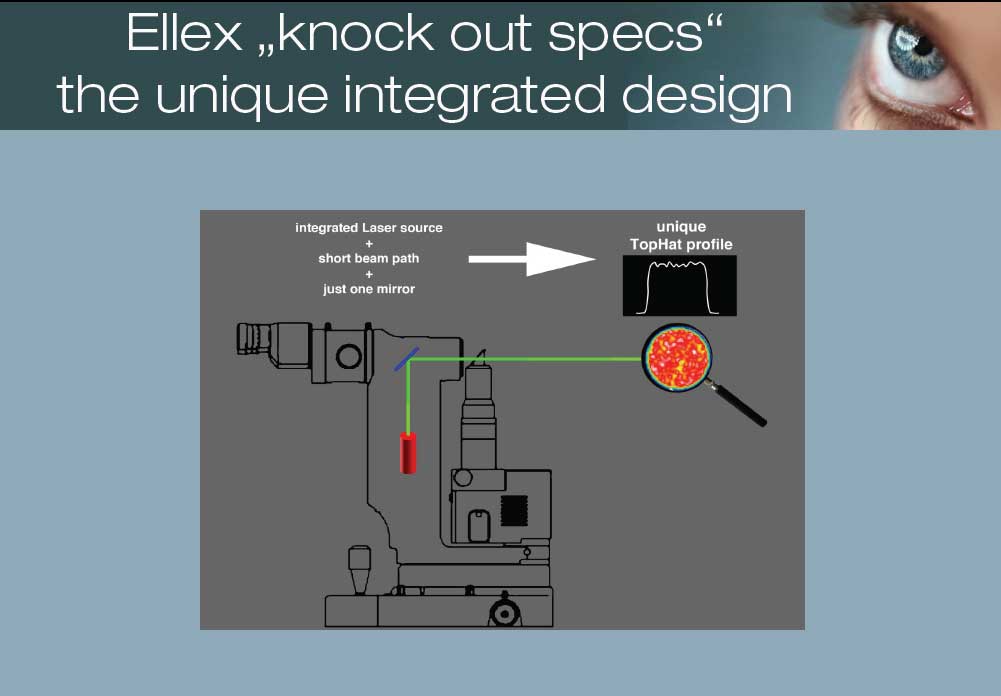

Unlike other photocoagulator systems, which require an external dichroic or fixed mirror in order to connect the laser to the slit lamp, Integre Pro’s unique, integrated laser/slit lamp design channels the laser directly through the slit lamp optics. The end result is better visualization and optimal illumination. In addition, this integrated design minimizes system downtime, because there are no exposed fiber optic or electrical cables.
