Special Features
  • Highly portable
  • Can be used in any orientation
  • Standard prism heads or disposable probes
  • Lightweight and compact
  • Easy, one-handed use
  • Built in illumination
Specifications
  • HandheldWeight 240g/0.5lbs
  • Type Handheld Applanation Tonometer
  • Applanation Prism Interchangable Doubling Prism (Optional)
  • Scale Range 0 to 60mm Hg (1mm Hg Division)
  • Illumination ON/OFF Interlocked with Thumb Wheel
  • Illumination Bulb Interchangable Lens Bulb 2.5 V, 0.24 A
  • Magnification 6x
  • Head Rest Movable
  • Length 290mm
Optional Features
  • 3x Long Eye Relief Eyepiece
  • Haag Streit Measuring Prism
  • Lamp Cap with Blue FilterTonometer Tip (Generic)s

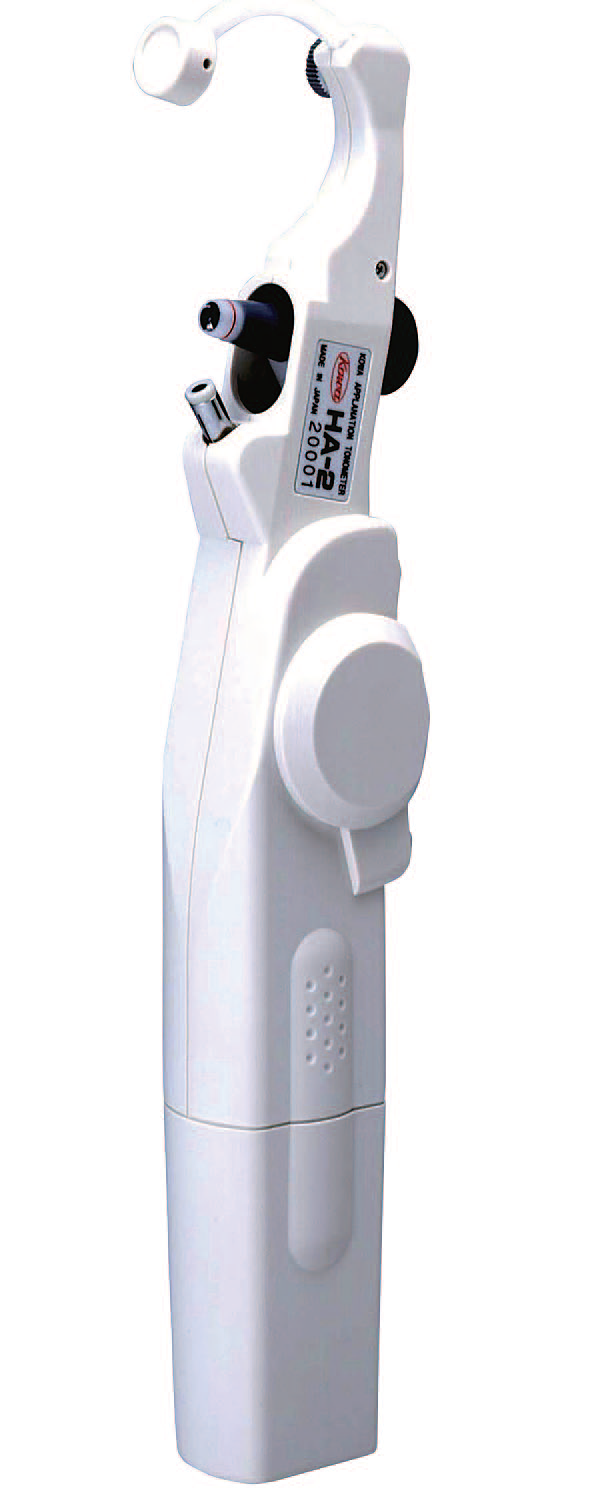

HA-2 Hand-held applanation tonometer

photo_ha_2Flexible, accurate tool

The HA-2 applanation tonometer works on the Goldmann prism principle and uses industry standard tonometer probes. The internal spring mechanism allows accurate readings of intra-ocular pressure in any orientation, regardless of patient position or posture.

Easy operation
The compact and lightweight design allows simple and easy operation and the built in illumination enables use of the instrument regardless of the lighting conditions. The precision dial provides direct readings of the pressure. A 3x long eyepiece is also available.

This instrument is ideal for domiciliary situations and as a back-up tonometer and provides pressure readings using the gold standard applanation principle.
