KOWA Genesis D Portable Fundus Camera
Specification
- Working Distance 5mm (Distance from Prism to Cornea)
- Camera 2 Megapixel
- Angle of View for Photographing Horizontal: 30° / Vertical: 25° Diopter
- Compensation Range (Patient’s Eye) -15m-1 (D) to +35m-1 (D)
- Illumination for Observation LED (White)
- Flash Lamp Photographing Xexon Flash Lamp
- Display Screen 2.5inch TFT Liquid Crystal Monitor
- Recording Media CompactFlash® (Type 1)
- Image Quality Selectable from FINE/NORMAL (JPEG) RAW DATA (BMP)
- Input Voltage AC100-240V, 50/60Hz
- Power Input 60VA
- Dimensions of Main Unit 74.5 (W) x 197 (D) x 278.5 (H) mm
- Weight of Main Unit 1070g/2.34lbs
- Dimensions of Power Supply Unit 180 (W) x 300 (D) x 230 (H) mm
- Weight of Power Supply Unit 1930 g/4.23lbs
- Diopter Adjustment Range (Ocular) -8m-1 (D) to +5m-1 (D)

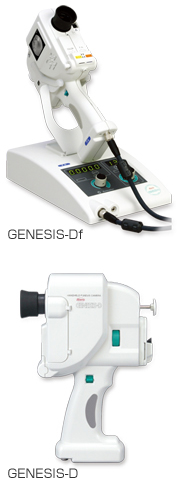

Kowa's portable retinal camera portability is ideal for domiciliary situations or when imaging is impossible using a conventional table-mounted camera. The GENESIS portable retinal camera range has been designed for easy one-handed shooting, and can be operated from both sides of the camera. The GENESIS-D is Kowa's handheld retinal camera that offers versatile, high quality, retinal imaging within an easy to use portable system.
For Color Retinal Photography
- ID Input
- Integrated with a 2 megapixel digital camera
- Power supply unit doubles as camera holder
One-Handed Easy Shooting
- Focusing knob and shutter button positioned on both sides of the device, thus enabling easier handling of the camera
Genesis-D Color System Includes:
- Handheld Optical Head
- 64MB CF Memory Card
- Standard Power Supply for Color Photography
- Foot Switch
