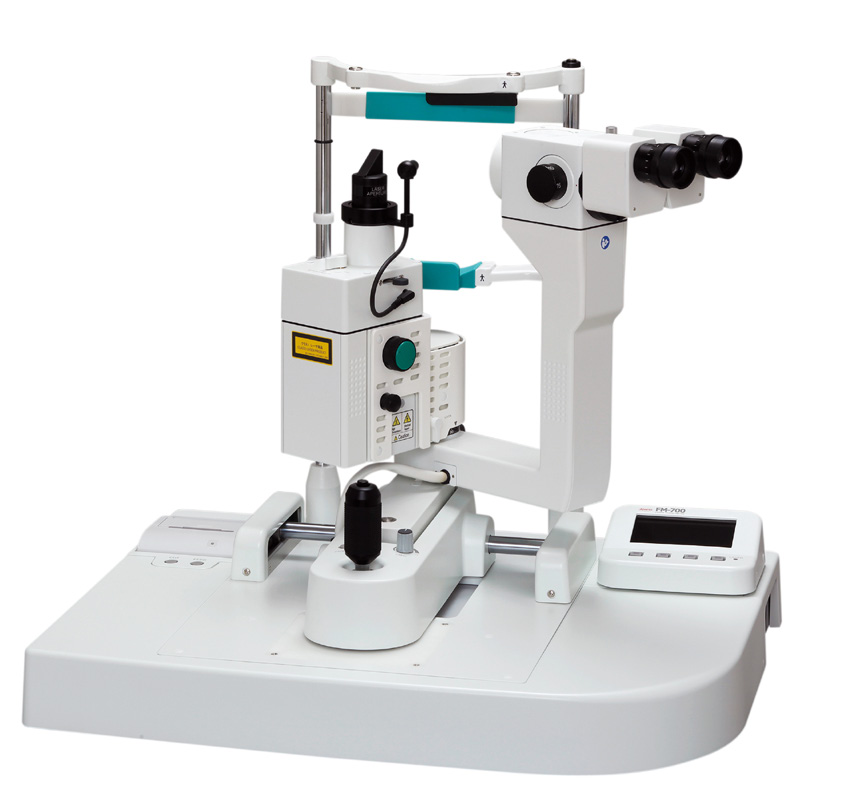

FM 700 Laser Flare Meter
Laser Flare Photometry is the only objective and quantitative method to reliably measure active inflammation in the anterior chamber.
The FM-700, Kowa’s unique aqueous flare meter combined with a slit-lamp design, allows the doctor to improve assessment of inflammation and provide a consistent follow up to patients by enabling the in-vivo measurement of aqueous flare in a non-contact, non-invasive and painless manner.
The quantitative and precise measurement of aqueous flare it provides is essential in the management of patients with uveitis and other ocular inflammatory diseases.
- A direct slit lamp biomicroscopy view of the anterior chamber combined with laser flare photometry
- Accurate, quantitative protein density measurement using the latest laser light scattering technique
- Ideal for uveitis and research centres
Kowa’s FM-700 aqueous flare meter, has been designed to combine the ultimate in accuracy and efficiency providing fast detection of ocular inflammation and subclinical change of inflammation levels.
- Easy alignment guide
- Precise results
- Non-contact, non-invasive measurement
- Comprehensive management of uveitis and other inflammatory diseases
Specification
- Type of microscope: Binocular stereoscopic microscope
- Total magnification: 7,10,16,26, 40 X
- Dioptic range of ocular: ±5D
- Interpupillary distance adjustment range: 55 to 72mm
- Slit width: 0 to 11mm continuously variable
- Slit length / Aperature diameter: 1 to 9mm continuously variable / Ø0.5mm, Ø11mm
- Measurement range: 1 to 500 photon counts / ms
- Measurement accuracy: ±5% (at around 80 photon counts / ms)
- Light source For observation: Halogen lamp (12V, 30W)
- Light source For flare meter: Laser diode (640nm, 35µ W)
- Light detector: Photomultiplier tube (PMT)
- Printer Printing method: Thermal line printer with automatic paper cutting function
- Printer paper: 58mm width
- Monitor: 4.3inch TFT colour LCD monitor
- Interface: RS-232C Dimensions / weight 600 (W) x 460(D) x 560 (H)mm / 25kg
- Power supply Input: AC100 – 230V, 50 / 60Hz.
- Power consumption: 60VA / 80VA (maximum)
