Specifications
  • Laser Source Q-switched, frequency doubled Nd:YAG
  • Wavelength green: 532 nm
  • Energy 0.3 to 2.6 mJ, single pulse, continuously variable
  • Pulse Duration 3 ns
  • Spot Size 400 μm
  • Repetition Rate up to 3 hertz
  • Aiming Beam red 635 nm, adjustable intensity
  • Magnification 10x, 16x, 28x
  • Cooling air cooled
  • Electrical Requirements 100 – 240 VAC, 50/60 Hz, 500 VA
  • Weight 30 kg, 66 lbs (laser only)
  • Dimensions (HxWxD) 57 x 75 x 44 cm, 23 x 30 x 18 inches (laser only)
Standard Accessories
  • Total Solution™ tables
  • remote display
  • safety glasses
  • laser safety sign
  • dust cover
Optional Accessories
  • Tonometer mount
  • SLT laser lens
  • footswitch
  • five-position magnification changer
  • beam splitter
  • 35mm camera adapter
  • video camera adapter
  • co-observation tube

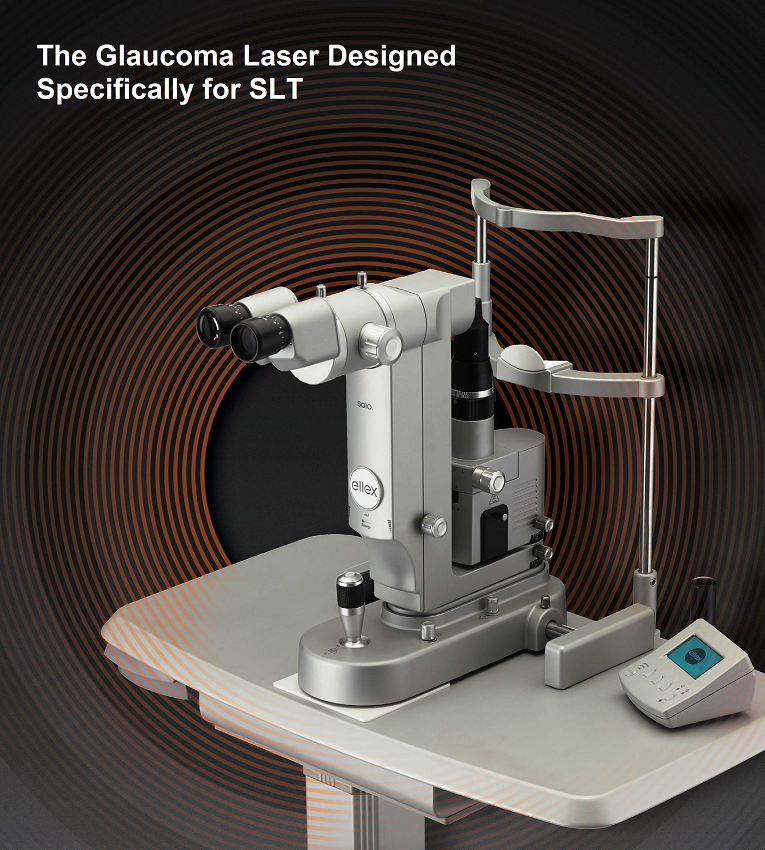

Solo™


Solo™ is engineered to be faster and more precise. The system’s proprietary cavity facilitates effective heat transfer and cooling to deliver the industry’s fastest SLT firing rate at 3 shots per second. In addition, an automatic calibration process and a series of test-fire sequences uses feedback from the system’s energy monitor in order to constantly adjust system output, enabling precise adjustment of parameter settings at 0.1 mJ increments.


SLT. Primary. Adjunct. Replacement.

Selective Laser Trabeculoplasty, SLT, is a gentle, non-invasive approach for stimulating the generation of healthy trabecular meshwork (TM) cells and managing intraocular pressure (IOP) without the burn and scar tissue associated with other laser procedures.SLT is a highly effective approach for first-line glaucoma treatments, adjunct therapy with drugs, and alternative therapy when drugs or surgery fail. It is also a flexible treatment option, because it can be repeated, if necessary, depending on the individual patient’s response.




solo


SLT Technology from Ellex

Ellex’s proprietary SLT technology features a high level of precision, in which parameter settings can be adjusted at 0.1 mJ increments. This capability, coupled with superior energy control, enables you to deliver highly accurate SLT treatment. All SLT treatment parameters are designed to industry-recognized treatment protocols, maximizing treatment options and ensuring effective patient results.Offering superior energy control, a sharp-edged aiming beam and the industry’s fastest firing rate at 3 shots per second, Ellex's proprietary SLT technology allows you to visualize the TM in greater detail, and to perform procedures faster and with improved accuracy.To see more clinical footage, and to watch video interviews with the industry’s leading SLT experts, visit the SLT Video Library
